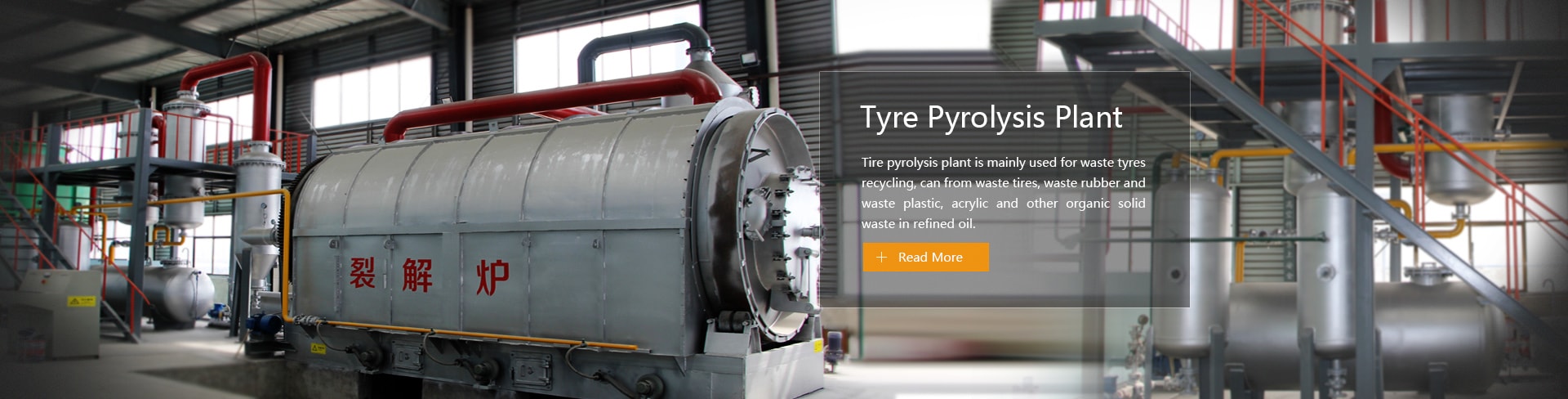

Tyre Pyrolysis Plant

Tyre Pyrolysis Plant


Tyre Pyrolysis Plant (Tyre Pyrolysis Plant : using the latest pyrolysis technology, this Tyre pyrolysis plant is developed by our company to refine oil from waste tires, waste rubber, acrylic and other organic solid wastes. Pyrolysis is a thermochemical decomposition of organic material at elevated temperatures in the absence of oxygen (or any halogen). It involves the simultaneous change of chemical composition and physical phase, and is irreversible.

Raw Material

Tyre Pyrolysis Plant is suitable for Waste tires(include all kinds of machine's tires, tire bead), waste rubber, Waste sole, inner tube, waste cable sheath, bicycle, motorcycle tires;

Tyre Pyrolysis Plant Raw Materials
Final Products And Application

The Final products of tire Pyrolysis Plant : 45% Tire oil, 35% carbon black; 12-15% steel wire; 5-8%.Tire oil is also called fuel oil, can be directly sold (they are also used for processing or used for boiler combustion, bath center, restaurants, burning fuels such as floor brick) or deep processing into organic solvent with refining equipment and automotive fuel, etc. Carbon black can be directly as a fuel sales, also can use carbon black refining processing equipment, this equipment has two kinds of models, a kind of model can be processed to 300-1000 purpose, end products can do tire rubber or filling material, a kind of model can be processed to 1000-2500 purpose, end products can do industrial carbon black, printing ink, etc. Plastic oil, fuel oil, also called direct sales or used as fuel. Plastic quality of carbon black a little almost used as fuel.

Main Products

Tyre pyrolysis plant is a complete system, the main equipment includes horizontal rotation cracking furnace, water seal system, multi-stage separator, static and dynamic seals, distillation column, efficient atomization desulfurization dust-removal device, as well as other devices. The whole pyrolysis system is designed reasonably, with high automation and perfect safety facilities, which conforms to the high environmental standards applying European countries, and has passed the American EPI environmental certification.

Production Process

In the process of tyre pyrolysis plant,the rubber is softened after which the rubber polymers continuously break down into smaller molecules. These smaller molecules eventually vaporize and exit from the reactor. These vapors can be burned directly to produce power or condensed into an oily type liquid, generally used as a fuel. Some molecules are too small to condense. They remain as a gas which can be burned as fuel.When performed well a tyre pyrolysis process is a very clean operation and has nearly no emissions or waste.

Tyre Pyrolysis Plant_Production Process
Equipment Safety

Our company is the professional waste tire pyrolysis plant manufacturer,with the concept of the scientific development and the harmonious always put the safety first. The raw material and manufacturing equipment all are according to the national standards of steel containers during the process of equipment manufacture. The tyre pyrolysis plant will in the Micro Negative Pressure condition during operating, and it can be good to prevent gas leaking. The essential component of non-condensable gases is hydrocarbon organic matter from CI to C4 and hydrogen chloride, sulfur, formic acid, and acetic acid. If the non-condensable gases burn directly, serious corrosion will occur, even occur serious accidents.

In current process , Remove the corrosive harmful gas before it being burned as fuel oil, and separated into two independent systems by Micro Negative Pressure system and combustion system, then through the second safety liquid seal gas separation device and a special fire-back burning device, and then into the combustion system to burn. More important is we use the temperature , pressure multi-touch , over temperature and the overpressure automatic alarm system,The tyre pyrolysis plant using the newest overpressure automatic blasting to replace the pressure relief valve, and set up the pressure relief device, ensure that the pressure balance during operating.

Product Model
Tyre Pyrolysis Plant Product Model
