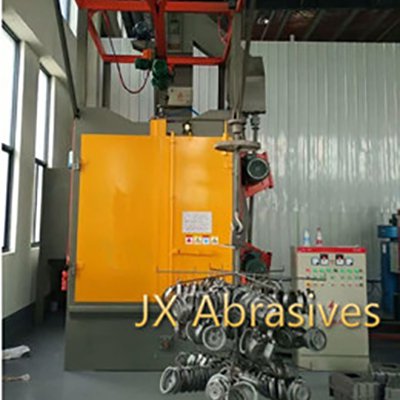

The Hanger Shot Blasting Machine for Auto Parts is used in the surface treatment of small, medium or large auto Parts.
It is made for increasing roughness of surface and shot peening to raise fatigue strength.

Main Technical Parameter:
Size of Blasting Jobs:
Max. Size for work piece (diameter*height) Ф1100×1200mm.

Blast nozzles(2 set) diameter of impeller: Ñ„250 mm.
Rotating speed: 2900r/min.
Max.volume for blasting: 2×180kg/min.
Power: 2×11kw.

Lifting Hook:
(double) Max. hangering weight: 1000kg.
Speed of autorotation: 2.8m/min.
Self-Rotating power: 0.55kw.
Running speed: 20m/min.
Walking power: 0.2kw.
lifting speed: 8m/min.
Lifting power: 1.5kw.

Pulse Jet Type 1 set:
Dust Collector Model SXLT-9.
Cartridge Filter: Φ325 × 660 mm.
Cartridge Filter Quantity: 9pcs.

Air Volume: 9500m3/hr.
Centrifugal Air Fan: 7.5kw.
